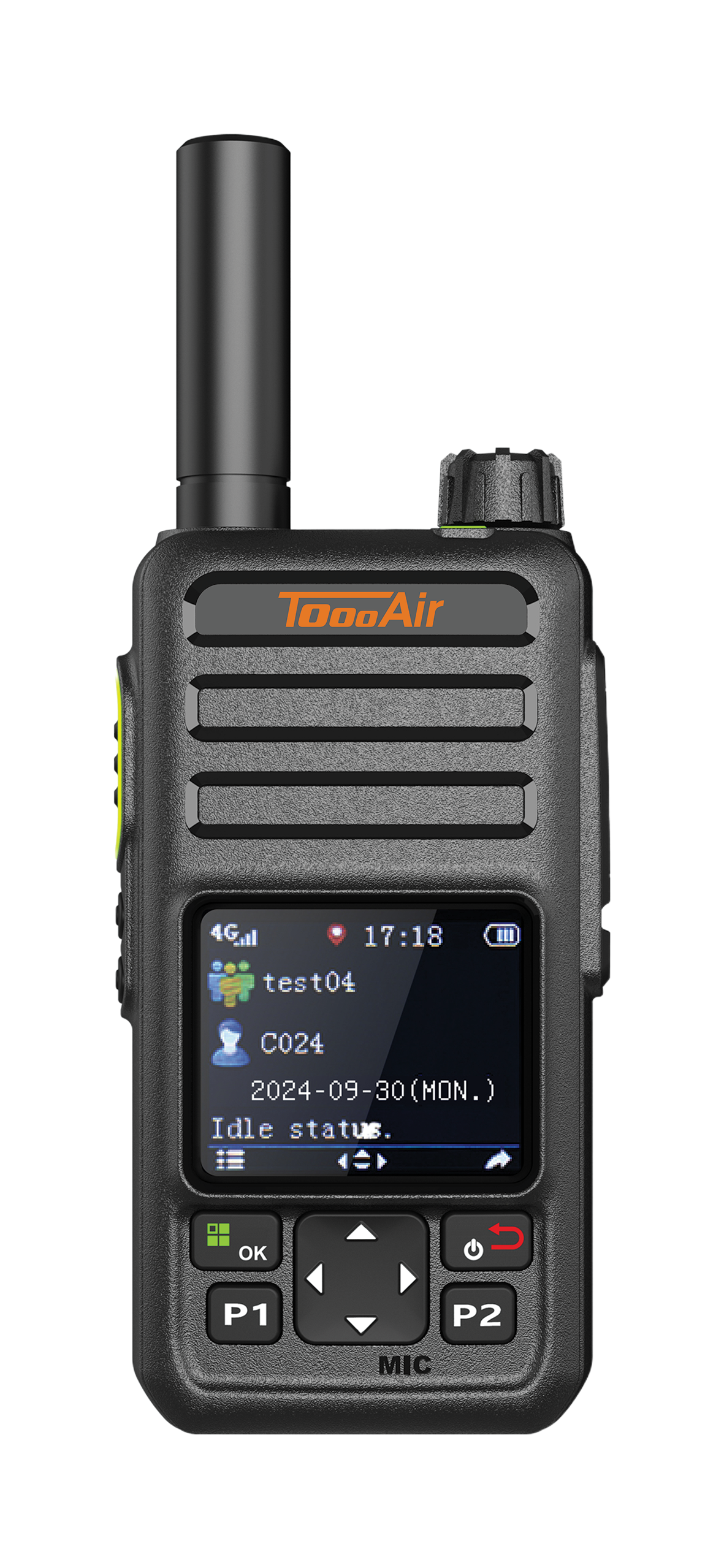

TA-308 Handheld

PTToC Push-to-Talk over Cellular (PoC) is a technology offering VoIP two-way radio communication over a Wide Area utilising the cellular phone data networks

The TA-308 is a compact unit weighing just 235 grams. Features include a large backlit coloured LCD display indicating broadcaster ID, Group, Signal strength, Battery level and GPS acquisition. Two quick select buttons for Individual call and Group call make the TA-308 extremely user-friendly.

All ToooAir transceivers have built-in GPS receivers that report position information to the dispatch console. The ToooAir platform is ideal for rental fleets with full over-air re-programming. With no ACMA spectrum licencing required, radios can be moved from fleet to fleet or new talk groups and operated anywhere in Australia.

* Distance to cellular tower, GPS reporting and talk time effect battery drain.

Brochure Our Price:

$479.00

–

Specifications | Click to Show/Hide

Model Number:	TA-308
Dimensions:	106mm x 60mm x 35mm
Weight:	235g
Working Temperature:	-30°C to +75°C
Ingress Protection:	IP54

Working Voltage:	3.3v ~ 4.2v (standard 3.7v)
Battery:	2900mAh
Working Current:	35mA @ LTE
Peak Current:	0.8A

WCDMA:	850MHz/2100/1900MHz (Band1, 2 & 5)
LTE: FDD	B1,B3 ,B5, B7,B8 and B28
Output Power:	LTE 23 (Power Class 3) 2.7dBm
Receiving Sensitivity:	≤ 106dBm

GPS:	1.575.42 GHz
Sensitivity:	Catch -143dBm, Track -159dBm

Protocol:	WCDMA / EDGE / LTE-FDD 4G

Note: Due to continuous development, the above is subject to change without notice

Large Colour Backlight Display

Shortcut Keys for 4 Groups and 4 Individual users

Keypad Lock

Built-In GPS Receiver

2900 mAh Li-ion Battery

USBc & Drop-in Desktop Charging

Signal Strength and Battery Level Indicators

Lightweight - 235g

Features

Group Call (One to Many)

User can select a pre-programmed group and instigate a group call and talk to all members of the group. Radio can be part of multiple groups and choose a primary group for transmission.

Individual Private Call (One to One)

User can select an individual radio or the dispatcher and perform a one on one private call outside the group.

Internal GPS Engine

The internal GPS engine reports its position every 30 seconds to the dispatcher (Programmable). GPS acquisition status is shown on radio LCD display.

Menu Shortcut Key

Instant access to Group list or Member select.

Radio Stun

The dispatch software can stun a radio should the radio be stolen or abused. Radio stun can also be controlled by platform if fleet is not using dispatcher.

USB Charge Port

The radio can be charged via a USBc from any 5 volt USB port (Cable supplied).
