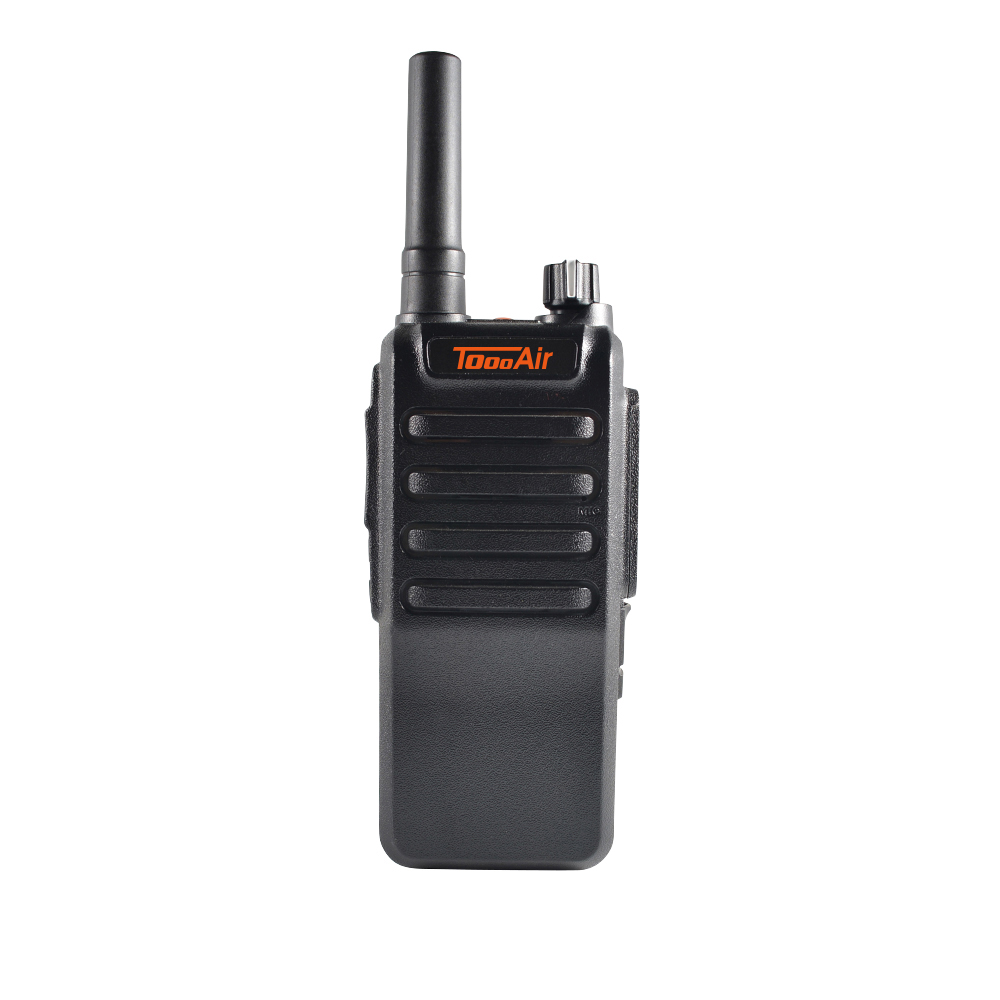

TA-582 Handheld

Introducing our latest addition to the PTT Radios family—the TA - 582. This user-friendly and robust radio offers a cost-effective solution to meet numerous communication needs.

Powered by a high-capacity 5000mAh battery and featuring enhanced low power consumption, the TA-582 boasts an impressive two-day operational span on a single charge. With the TTS (Text to Speech) engine, critical information such as group selection, battery level, and incoming messages are audibly announced, eliminating the need for a visual LCD screen.

User Manual Brochure Our Price:
$575.00
+
Specifications | Click to Show/Hide

Model Number:
TA-582
Colours: Black
Dimensions: 135mm x 56mm x 41mm
Weight: 282g
Working Temperature: -30° to +75°
Ingress Protection: IP54

Working Voltage: 3.3V ~ 4.2V (Standard 3.8V)
Battery: 5000mAh
Working Current: 500mA @ LTE
220mA @ WCDMA
Peak Current: 2 A
Audio Output: 1W

LTE FDD: Band 1/2/3/5/7/8/28A/28B/40
WCDMA: Band 1/5
Maximum Output Power: LTE:23±2.7 dBm (Power Class 3)
WCDMA:24 +1/-3dBm (Power Class 3)
Receiving Sensitivity: LTE FDD ≤-100 dBm;
WCDMA 850:≤-108 dBm;
WCDMA 1900:≤-109 dBm;

GPS: GPS Positioning, 1.57542GHz
Sensitivity: Catch -144dBm, Track -159dBm
Data Speed Rate: LTE FDD-Uplink 50 Mbps / Downlink 150 Mbps
WCDMA-Uplink 5.76 Mbps / Downlink 42 Mbps
Protocol: Support embedded TCP& UDP Protocols Support Protocols PAP and CHAP used for PPP connection
3GPP TS27.005,27.007

Note: Due to continuous development, the above is subject to change without notice

PTToC 3G/4G
& 4GX

13 pin M5
Connector

GPS Receiver
Built-In

Text to
Speech

Battery level
announcement

Dedicated SOS

Private Call & Missed
Call Alert

5000mAh
Battery

Features

Wide Area Coverage

The TA-582 seamlessly connects to the extensive Telstra 3G/4G and 4GX cellular network, providing robust point-to-point communication across Australia.

Group Call (One to Many):

Users can effortlessly initiate group calls by selecting pre-programmed groups, enabling communication with all members simultaneously. Groups can be configured and added over air.

Individual Private Call (One to One):

With the TA-582, users can choose to engage in one-on-one private calls with specific radios or the Dispatcher, ensuring secure and confidential communication outside the group setting.

Text to Speech:

While the TA-582 lacks a visual LCD, it compensates with Text-to-speech functionality, ensuring that important information is audibly communicated to users.

Internal GPS Engine:

The internal GPS engine of the TA-582 enhances operational efficiency by reporting its position to the Dispatcher every 30 seconds (programmable). This feature provides real-time location data for effective coordination.

Dedicated SOS:

Equipped with a dedicated SOS button, the TA-582 enhances user safety. When held for 3 seconds, the SOS button triggers alerts to all other units, indicating the user’s location on the Dispatcher’s map display. This feature is crucial in emergencies, ensuring swift response and assistance.
